Single Coil Mechanical Seals

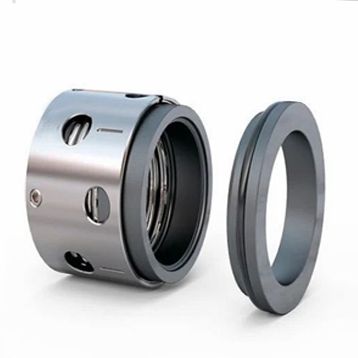

Single Coil Mechanical Seal (ALSC)
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Single acting | Size – 18 to 100mm | Seal Face – Carbon, SIC, TC | Chemical and Pharmaceutical Ind. |
| Unbalance as well as balance design | Pressure – up to 10 bar for Unbalance up to 30 bar for Balance | St. Seat Face – SIC, TC | Petrochemical Industries. |
| Inside Mounted | Temperature – up to 280 0 C (Depend upon elastomer ) | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Independent of direction of rotation | Speed – 2900 rpm23 m/s | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| Food and Beverage Industries | |||
| Water and Waste water Sewage Pump |
