Cartridge Mechanical Seals

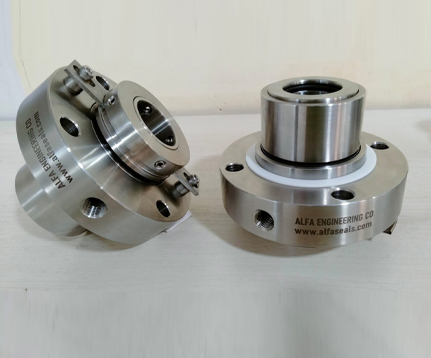

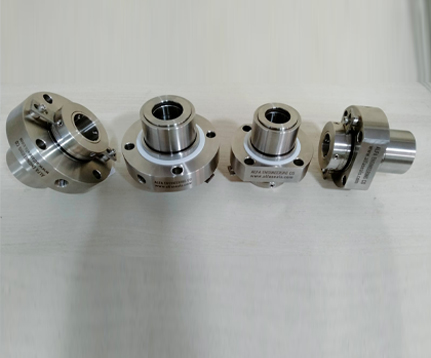

Cartridge Mechanical Seal (ALKT)
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Cartridge Construction | Size – 20 to 100mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| Pre-Assembled | Pressure – up to 25 bar | St. Seat Face – SIC, TC | Pulp and Paper Industries |
| Static Compression Unit | Temperature – up to 220 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Slurries |
| Balanced | Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
