PTFE / Tefloan
| Products | Standard Dimensions |
|---|---|
| PTFE Moulded Rod/Round Bar | Dia 25mm - 500mm Dia Lenght upto 500mm |

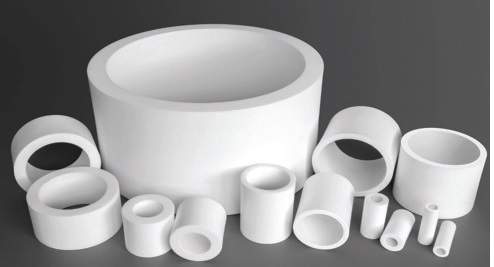

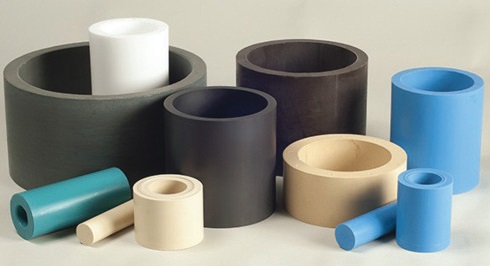

| PTFE Moulded Bush, Sleeve & Hollow Bar | Custom made outer & inner dia. Lenght 100, 300, 500mm long |
| PTFE Moulded Sheet | hickness 2.5mm to 100mm Lenght & Width - 300mm2 to 1200mm2 |
| PTFE Ramextruded Rod / Round Bar | 5mm DIA upto 100mm DIA, 900mm DIA, 1000mm DIA, 2000mm DIA |
PTFE Ramextruded Pipe, Sleeve, Tube | 25mm OD x 12.5mm ID to 100mm OD x 75mm ID, Lenght upto 3300mm |
| PTFE Skived Sheet, Thin Sheet - | 50mm WIdth to 1200mm Width Thickness 0.1mm to 3mm |
| PTFE Flexible Tube | 0.8mm, 1mm, 1.5mm wall thickness in coil forms. |
| PTFE Cit Gasket, Ring Gasket - | To suit flange standard table E/F, ANSI-B-16.5-150#, 300#, 600# DIN Std. Size 1/2" NB to 28" NB (15NB - 700NB) available in Raise Face & Full Face |
| PTFE Envelope Gasket 15 NB to 750 NB Note:Envelop gasket available with asbestos, non asbestos, steeland rubber filled insert | Slitted type / V type with flap thickness 0.5 + 0.5mm milled / U-type with gap 1.5, 2, 3, 4mm Flap (0.5 + 0.5)mm |
| PTFE valve components & pump components - | Seat ring, stem ring, body ring, plug/sleeve ring |
