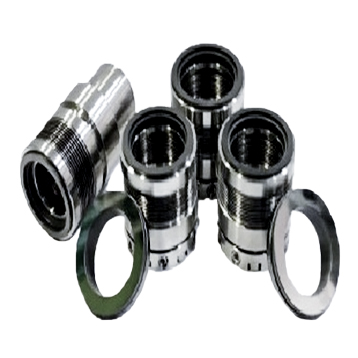

Metal Bellow Mechanical Seal (ALMB)
Metal Bellow Mechanical Seal (ALMB)
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Metal Bellow | Size – 25 to 100mm | Seal Face – Carbon, SIC, TC | High Temperature Media |
| No Fretting | Pressure – up to 20 bar | St. Seat Face – SIC, TC | Highly Corrosive Chemical. |
| Hydraulically Balance | Temperature – up to 350 0 C | Elastomer – Grafoil Packing, FFKM | High Temperature Process Industries |
| High Temperature | Speed – 2900 rpm | Metal Parts – SS316, Hast-C | Thermic Fluid |
