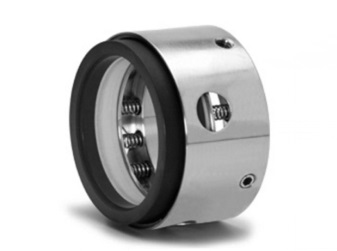

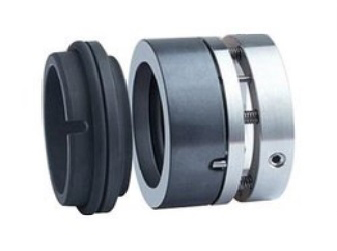

Multi Spring Mechanical Seals
Multi Spring Mechanical Seal (ALMS)
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| For Plain Shaft | Size – 18 to 100mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| Single acting | Pressure – up to 10 bar for Unbalance up to 30 bar for Balance | St. Seat Face – SIC, TC | Petrochemical Industries. |
| Inside Mounted | Pressure – up to 12 bar for unbalance up to 25 bar for balance | St. Seat Face – SIC, TC, Ceramic | Petrochemical Industries. |
| Unbalance as well as balance design | Temperature – up to 180 0 C for unbalance up to 220 0 C for balance | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Inside Mounted | Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| Independent of direction of rotation | Food and Beverage Industries | ||
| Water and Waste water Sewage Pump |
