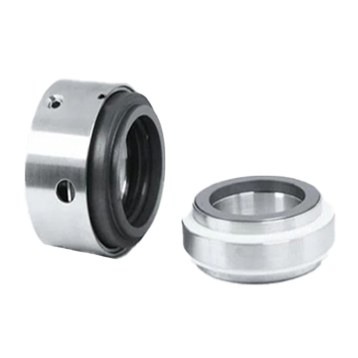

Reverse Balance Mechanical Seal
Reverse Balance Mechanical Seal (ALRB)
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Metal free contact | Size – 25 to 150mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| Reverse balance design | Pressure – up to 25 bar | St. Seat Face – SIC, TC,Ceramic | Petrochemical Industries. |
| Outside mounted | Temperature – up to 180 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Can tolerate pressure reversal | Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| Substitutes PTFE Bellow Seal at higher pressure and temperature | Food and Beverage Industries | ||
| Water and Waste water Sewage Pump |
