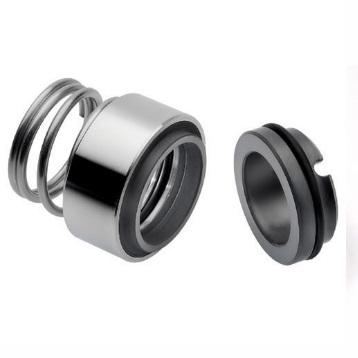

Conical Spring Mechanical Seal
Conical Spring Mechanical Seal (ALCO)
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Unbalance as well as balance design | Size – 12 to 100mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| High strength | Pressure – up to 10 bar for Unbalance up to 15 bar for Balance | St. Seat Face – SIC, TC | Petrochemical Industries. |
| Easy to fit | Temperature – up to 180 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology | |
| Food and Beverage Industries | |||
| Water and Waste water Sewage Pump |
